NC Miata Rear Traction Links MX-5 RX-8 FE

NC Miata Rear Traction Links MX-5 RX-8 FE

Regular price £434.91
Regular price Sale price £434.91
Sale Sold out
Tax included.

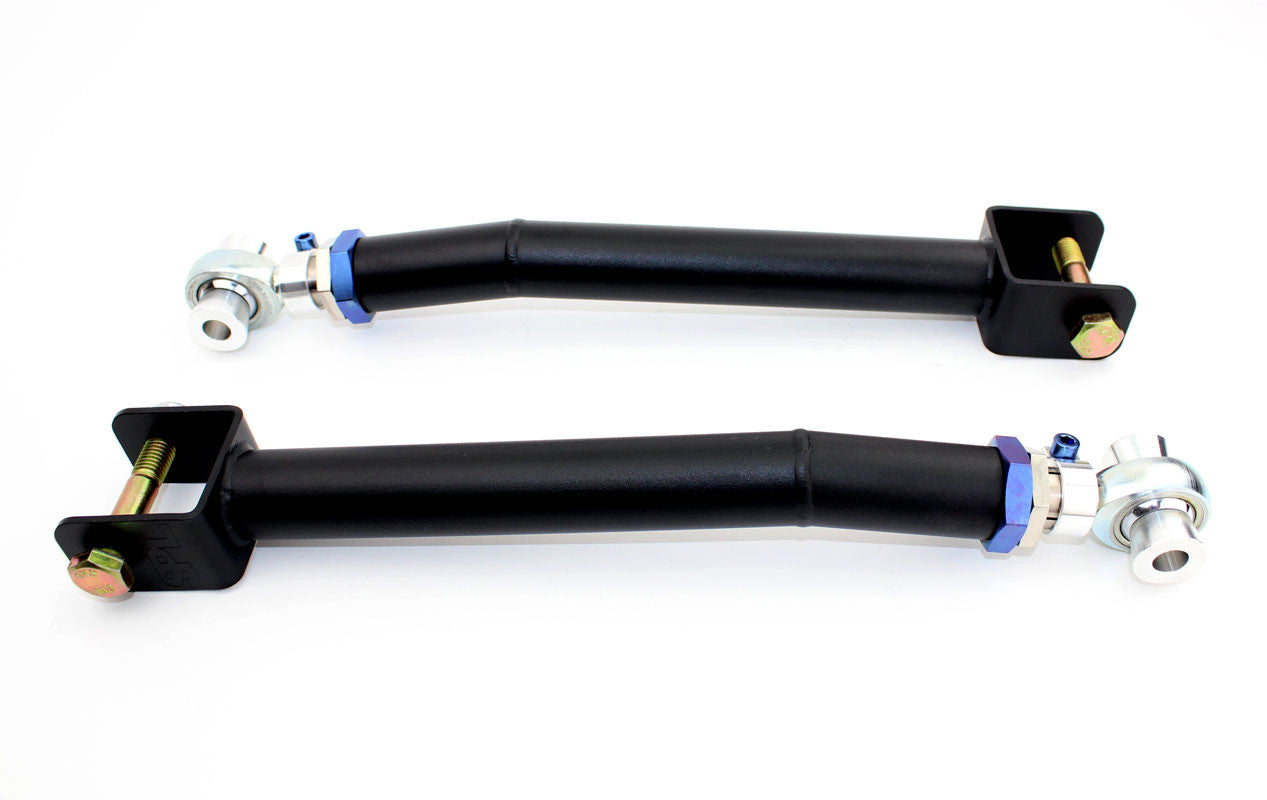

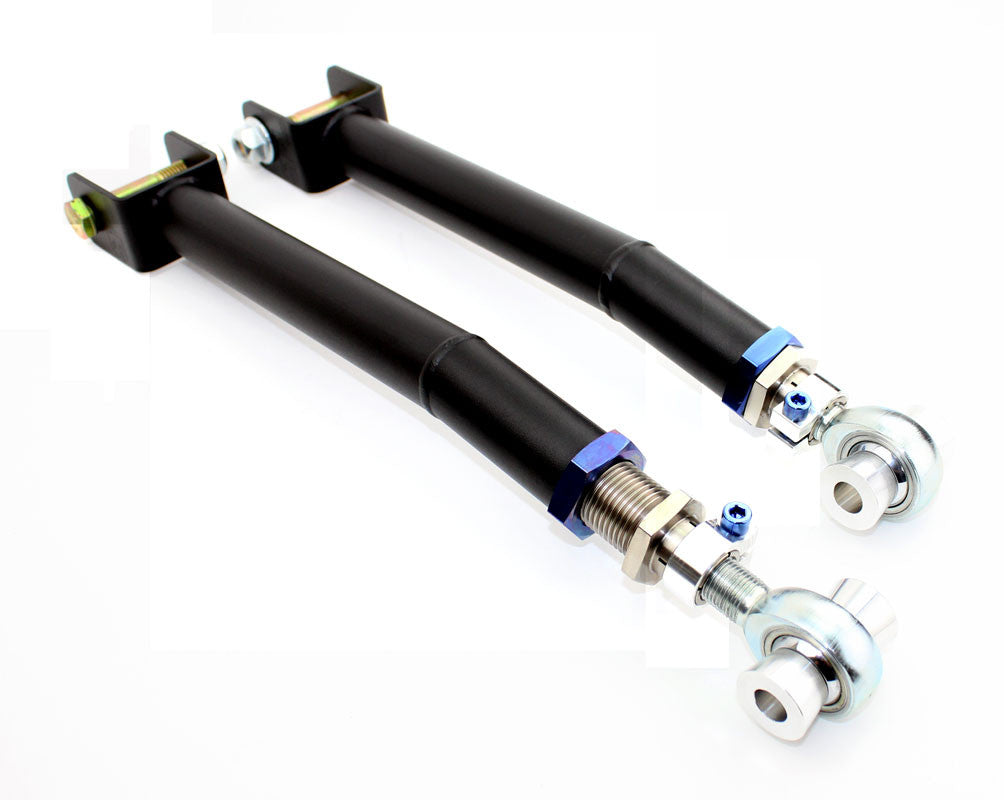

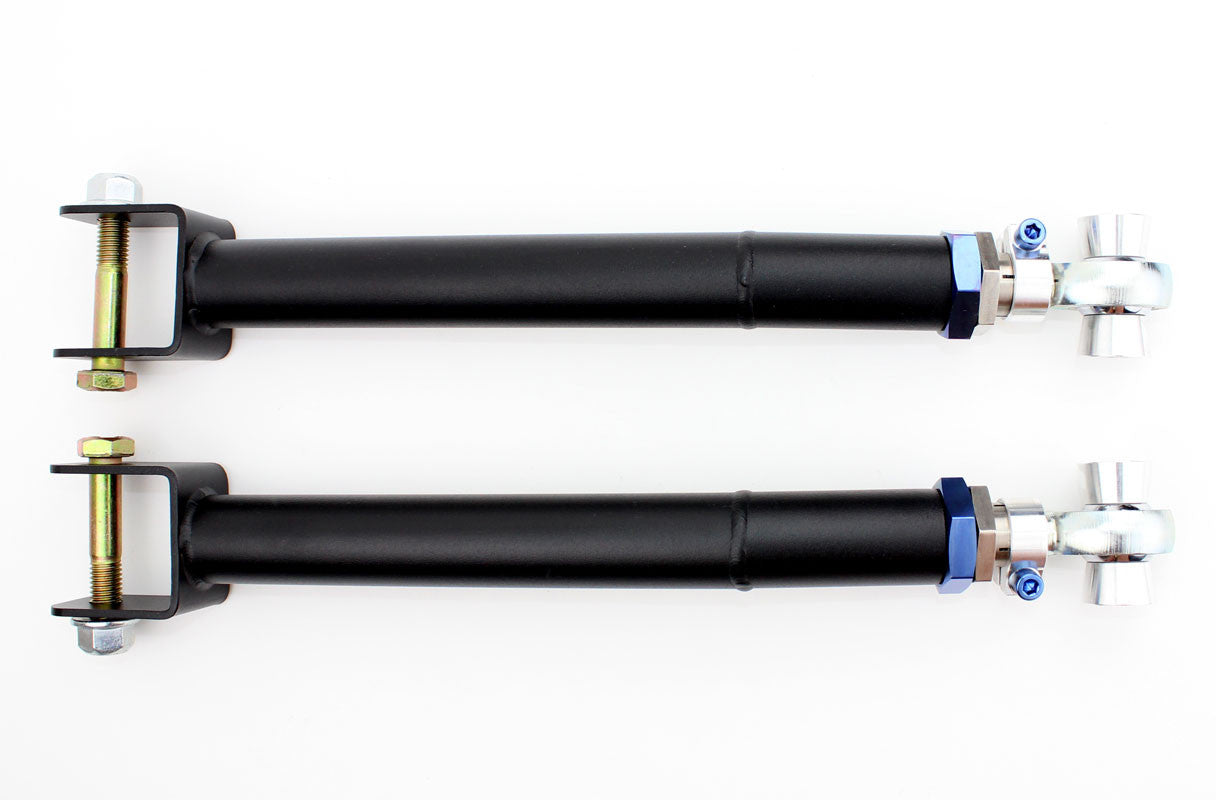

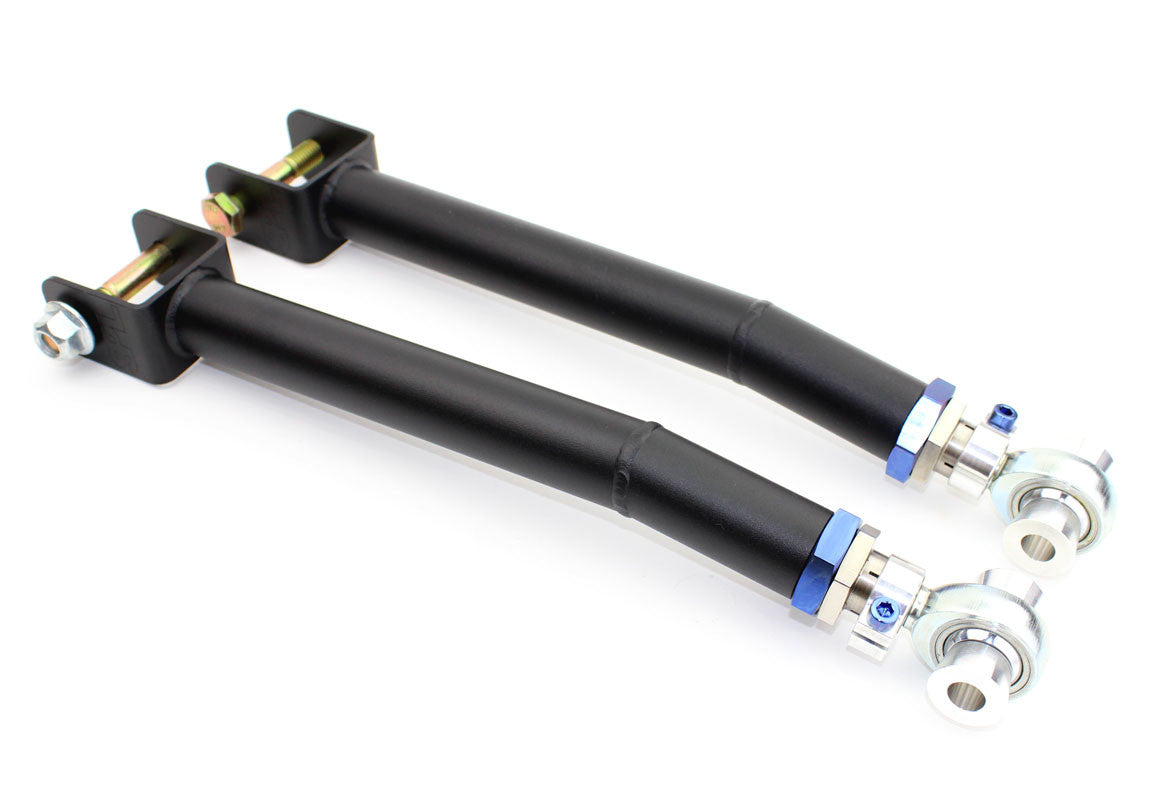

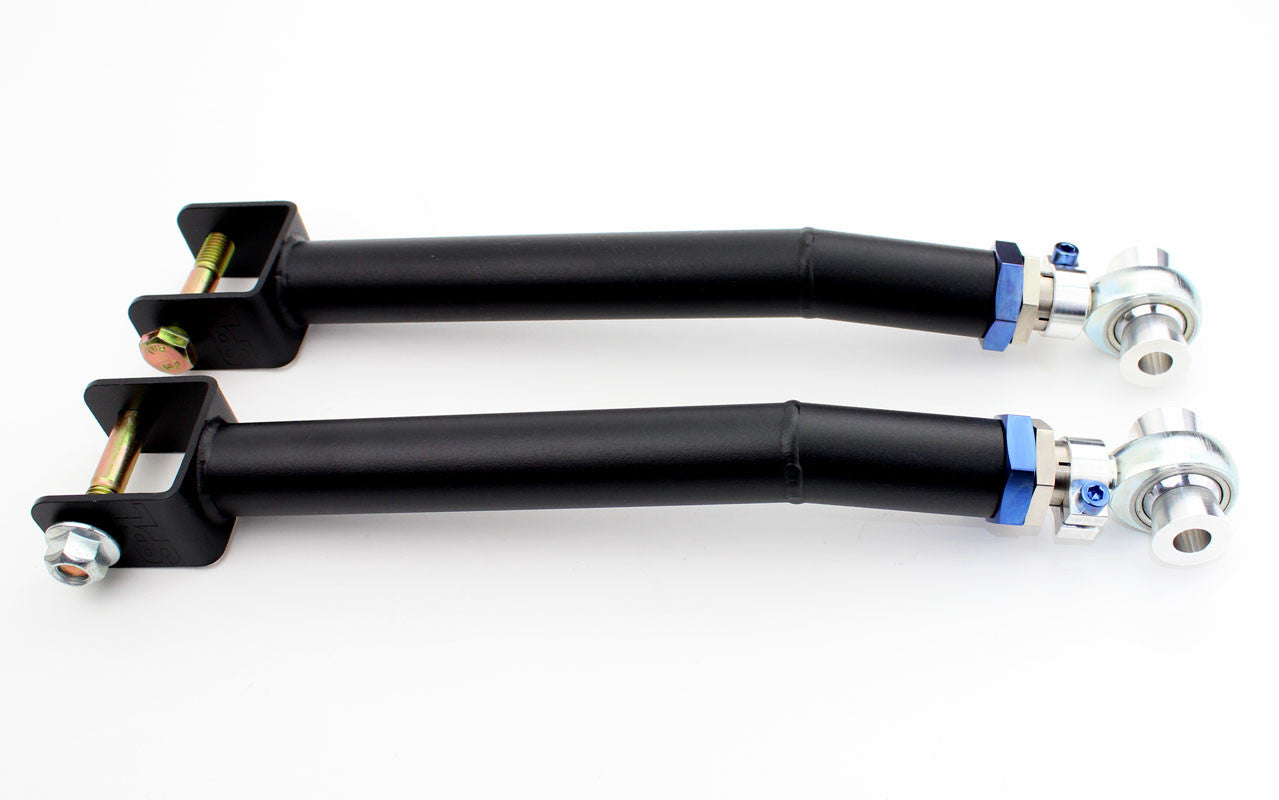

SPL Parts TITANIUM Series NC Miata Rear Traction Links (RTR) for the NC Miata and RX-8 eliminate the soft unresponsive and often worn out rubber bushings on the stock links.

Our Rear Traction Links help to eliminate toe changes in the rear suspension under hard acceleration/braking and when going over bumps, providing more stability and predictability to the rear suspension for precise tighter handling.  Our Rear Traction Links are also length adjustable to allow the rear suspension bumpsteer characteristics to be adjusted to correct for lowered cars.

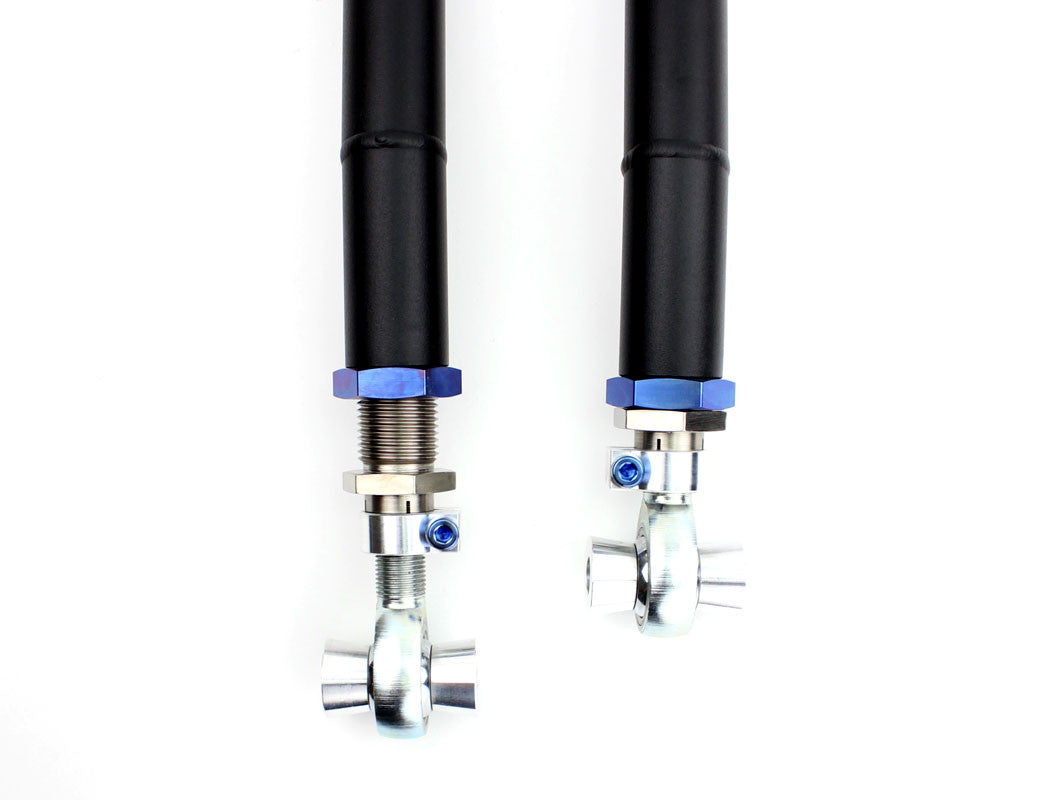

SPL Parts Rear Traction Arms feature 1.25" 4130 Chromoly tubing that is slipped over a CNC machined threaded sleeve then TIG welded, making our links extremely strong yet lightweight.  Our exclusive 4130 Chromoly Double Adjuster offers quick, precise adjustment, and is CNC gun drilled to reduce weight.  Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength.

FK Bearings Rod Ends manufactured in Connecticut feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load.  The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65º to 325ºF, offering robust reliability for both street and track use.

Sold as a pair.

Made in the USA.

SPL Parts Adjustable NC Miata Rear Traction Arm Features:

•    Lightweight Aluminum, Titanium, and Chromoly construction
•    Powder coated black to protect against corrosion
•    Electroless Nickel-plated 4130 Chromoly Double Adjuster for quick adjustment
•    TIG welded
•    Teflon lined FK Rod Ends


2006 - 2015 Mazda Miata MX-5

2003 - 2012 Mazda RX-8


Installation Instructions:

SPL Rear Traction Arm NC Miata
